MCP Integration

Trailblaze exposes a clean 5-tool MCP API for UI automation and test authoring.

Quick Start¶

# Connect to a device
device(action=ANDROID)

# Take actions using natural language
step("Tap the login button")
step("Enter 'test@example.com' in the email field")

# Verify results
verify("Welcome screen is visible")

# Save your session as a reusable test
trail(action=SAVE, name="login_test")

The 5 MCP Tools¶

Tool	Purpose	Example
`device`	Connect to a device	`device(action=ANDROID)`
`step`	Take an action toward a goal	`step("Tap the submit button")`
`verify`	Check if something is true	`verify("Error message is visible")`
`ask`	Ask a question, get an answer	`ask("What is the current balance?")`
`trail`	Manage trails (save/run/list)	`trail(action=SAVE, name="my_test")`

Two Workflows¶

1. Device Control (Exploration)¶

For quick exploration and automation without creating reusable tests:

device(action=ANDROID)                    # Connect
step("Open the Settings app")             # Interact
step("Scroll down to About")
ask("What Android version is shown?")     # Query

Your session is automatically recorded. Save it anytime with trail(action=SAVE, name="...").

2. Test Authoring¶

For creating reusable test cases:

trail(action=START, name="checkout_flow", platform=ANDROID)   # Start named trail
step("Add item to cart")
step("Proceed to checkout")
step("Enter payment details")
verify("Order confirmation is displayed")
trail(action=SAVE)                                            # Save the trail

Run saved trails later:

trail(action=RUN, name="checkout_flow")   # Deterministic replay

Tool Reference¶

device¶

Connect to a mobile device.

Action	Description
`ANDROID`	Auto-connect to first Android device
`IOS`	Auto-connect to first iOS device
`LIST`	List available devices
`CONNECT`	Connect by specific device ID

device(action=ANDROID)
device(action=LIST)
device(action=CONNECT, deviceId="emulator-5554")

step¶

Execute an action using natural language. Trailblaze’s inner agent analyzes the screen and performs the necessary UI interactions.

step("Tap the Login button")
step("Enter 'hello@example.com' in the email field")
step("Scroll down until the Submit button is visible")
step("Swipe left to dismiss the notification")

Returns: Success/failure status with screen summary.

verify¶

Check if a condition is true on the current screen.

verify("The welcome message is visible")
verify("The cart shows 3 items")
verify("No error messages are displayed")

Returns: { passed: true/false, reason: "..." }

ask¶

Ask a question about the current screen state.

ask("What is the title of this screen?")
ask("How many items are in the list?")
ask("What error message is shown?")

Returns: The answer as a string.

trail¶

Manage trails (reusable test recordings).

Action	Description
`START`	Begin a named trail (optionally connect to device)
`SAVE`	Save current session as a trail file
`RUN`	Execute a saved trail (deterministic, no AI)
`LIST`	List available devices or trails
`END`	End session without saving

# Start a named trail
trail(action=START, name="login_flow", platform=ANDROID)

# Save session (works anytime, even without START)
trail(action=SAVE, name="my_test")

# Run a saved trail
trail(action=RUN, name="login_flow")

# List trails matching a filter
trail(action=LIST, filter="login")

# List available devices
trail(action=LIST)

Trail Files¶

Trails are saved as .trail.yaml files in the trails/ directory:

- config:
    id: login-flow
    title: Login Flow
    source:
      type: HANDWRITTEN

- prompts:
    - step: "Tap the login button"
      recording:
        tools:
          - tapOnElementByNodeId:
              nodeId: 42
    - verify: "Welcome message is visible"

Deterministic execution: When you run a trail with trail(action=RUN), Trailblaze replays the recorded tool calls without AI. This ensures consistent, fast test execution.

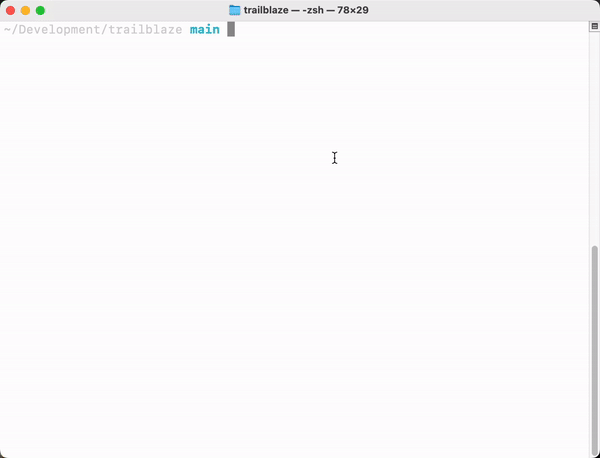

Setup¶

Running the Server¶

trailblaze

This starts: - MCP server on http://localhost:52525/mcp - Web UI for monitoring

Quick Setup with `trailblaze mcp install`¶

The fastest way to configure your MCP client:

trailblaze mcp install claude    # Configure Claude Desktop
trailblaze mcp install cursor    # Configure Cursor
trailblaze mcp install goose     # Print Goose configuration instructions
trailblaze mcp install            # Configure all supported tools

Connecting from Claude Desktop¶

Run trailblaze mcp install claude, or manually add to ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "trailblaze": {
      "url": "http://localhost:52525/mcp"
    }
  }
}

Connecting from Cursor¶

Run trailblaze mcp install cursor, or manually add to ~/.cursor/mcp.json:

{
  "mcpServers": {
    "trailblaze": {
      "url": "http://localhost:52525/mcp"
    }
  }
}

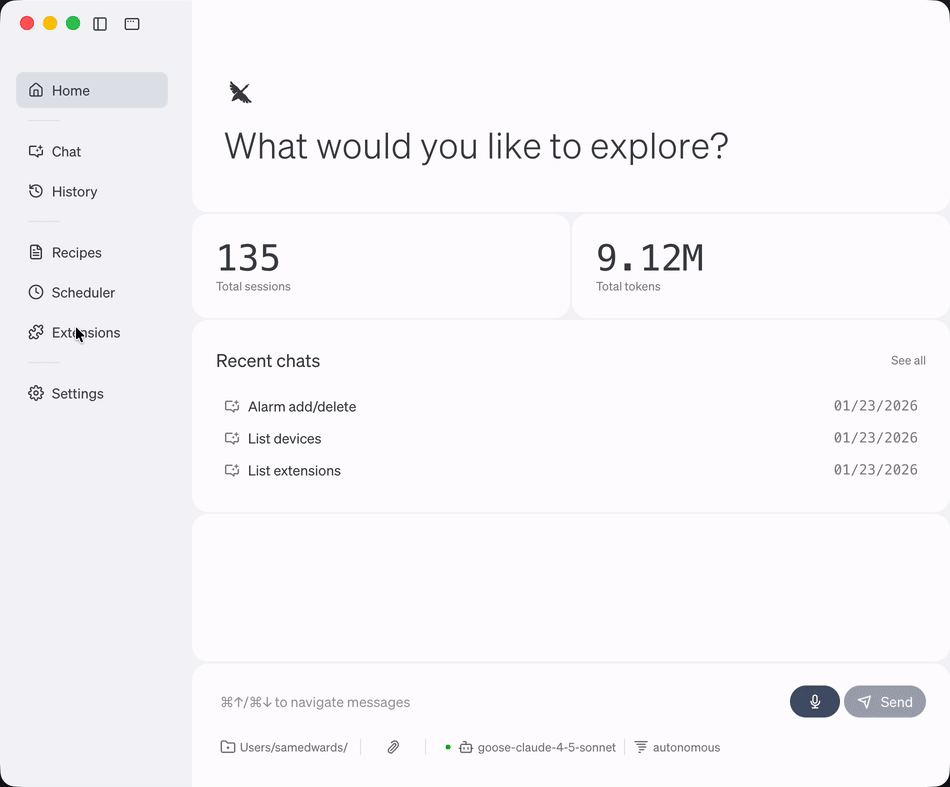

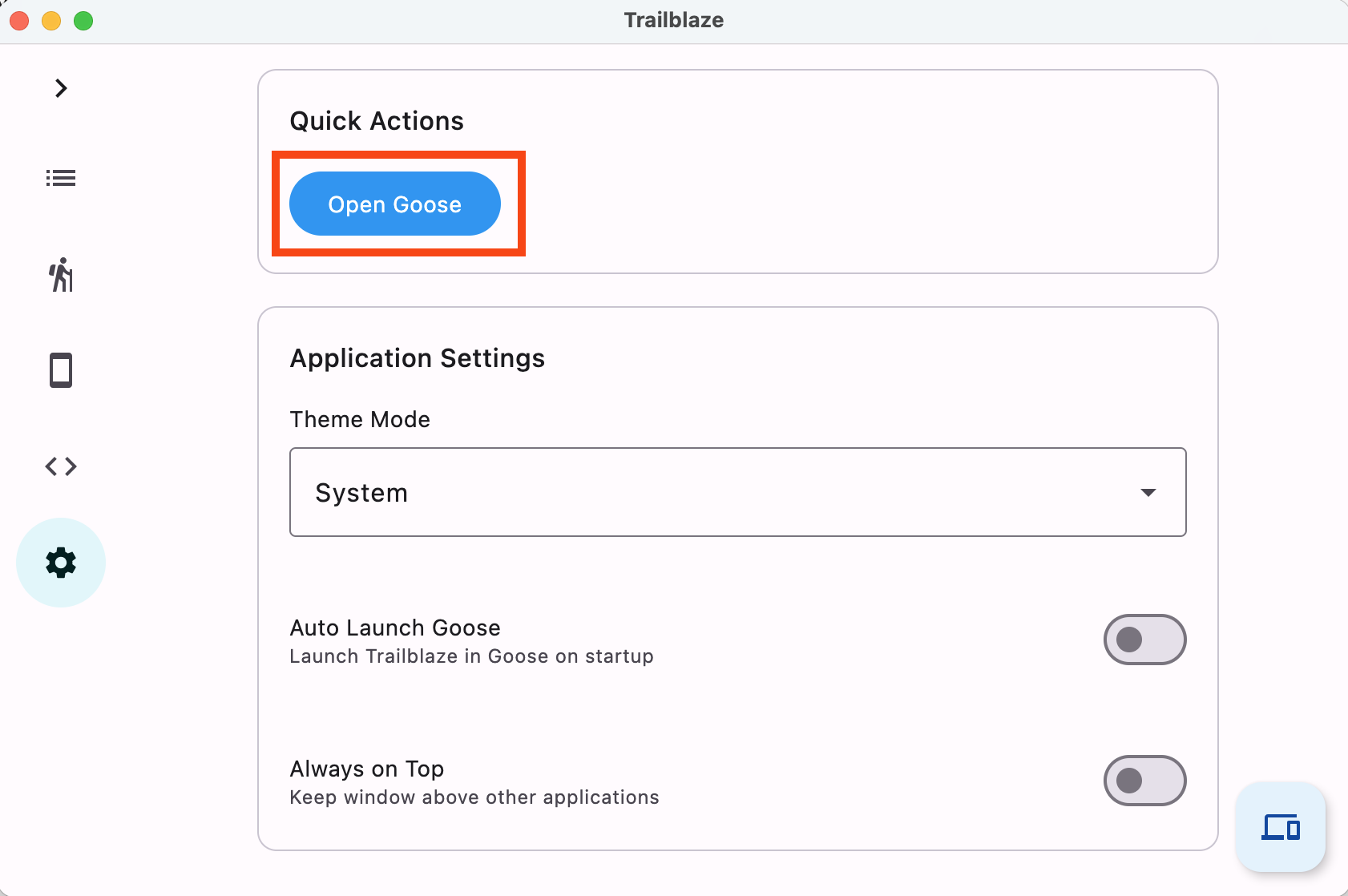

Connecting from Goose¶

Run trailblaze mcp install goose for instructions, or manually configure:

Download Goose Desktop
Add a new extension:
ID: trailblaze
Name: Trailblaze
Type: streamable_http
URI: http://localhost:52525/mcp

Or add to ~/.config/goose/config.yaml under mcpServers:

trailblaze:
  type: streamable_http
  url: http://localhost:52525/mcp

Connecting from Firebender¶

Add to ~/.firebender/firebender.json:

{
  "mcp": {
    "Trailblaze": {
      "url": "http://localhost:52525/mcp"
    }
  }
}

Then click Refresh All in MCP settings.

Architecture¶

MCP Client (Claude, Goose, Firebender)
              │
    ┌─────────┴─────────┐
    ▼                   ▼
 device              trail
(connect)         (test author)
    │                   │
    └─────────┬─────────┘
              ▼
      step / verify / ask
    (inner agent executes)
              │
              ▼
      Trail Recording Layer
    (captures actions taken)
              │
              ▼
        .trail.yaml file

The inner agent handles all screen analysis and UI interaction. MCP clients work with natural language - no need to deal with coordinates or view hierarchies.

Advanced: Two-Tier Integration¶

For MCP clients that want finer control, Trailblaze offers two-tier tools where your client acts as the outer agent (strategist) and Trailblaze provides screen analysis:

Tool	Purpose
`getScreenAnalysis`	Ask Trailblaze to analyze screen and recommend an action
`executeUiAction`	Execute a specific UI action

This enables: - Cross-system orchestration - Coordinate mobile UI with database, filesystem, API calls - Custom replanning logic - Your client decides when to retry or try alternatives - Cost optimization - Trailblaze uses a cheap vision model for screen analysis

See the migration guide under docs/decisions/009_migration_guide.md for details.

Troubleshooting¶

Device not found¶

device(action=LIST)   # See what's available

Android: Ensure USB debugging is enabled and adb devices shows your device
iOS: Ensure device is trusted and developer mode is enabled

Trail not found¶

trail(action=LIST, filter="login")   # Search for trails

Trails are stored in the trails/ directory relative to where Trailblaze is running.

Tools not appearing¶

After restarting Trailblaze: - In Goose: Re-enable the extension - In Firebender: Click “Refresh All” in MCP settings

Development¶

Test with the MCP Inspector:

DANGEROUSLY_OMIT_AUTH=true npm exec @modelcontextprotocol/inspector

Add Trailblaze using Streamable HTTP transport: http://localhost:52525/mcp
